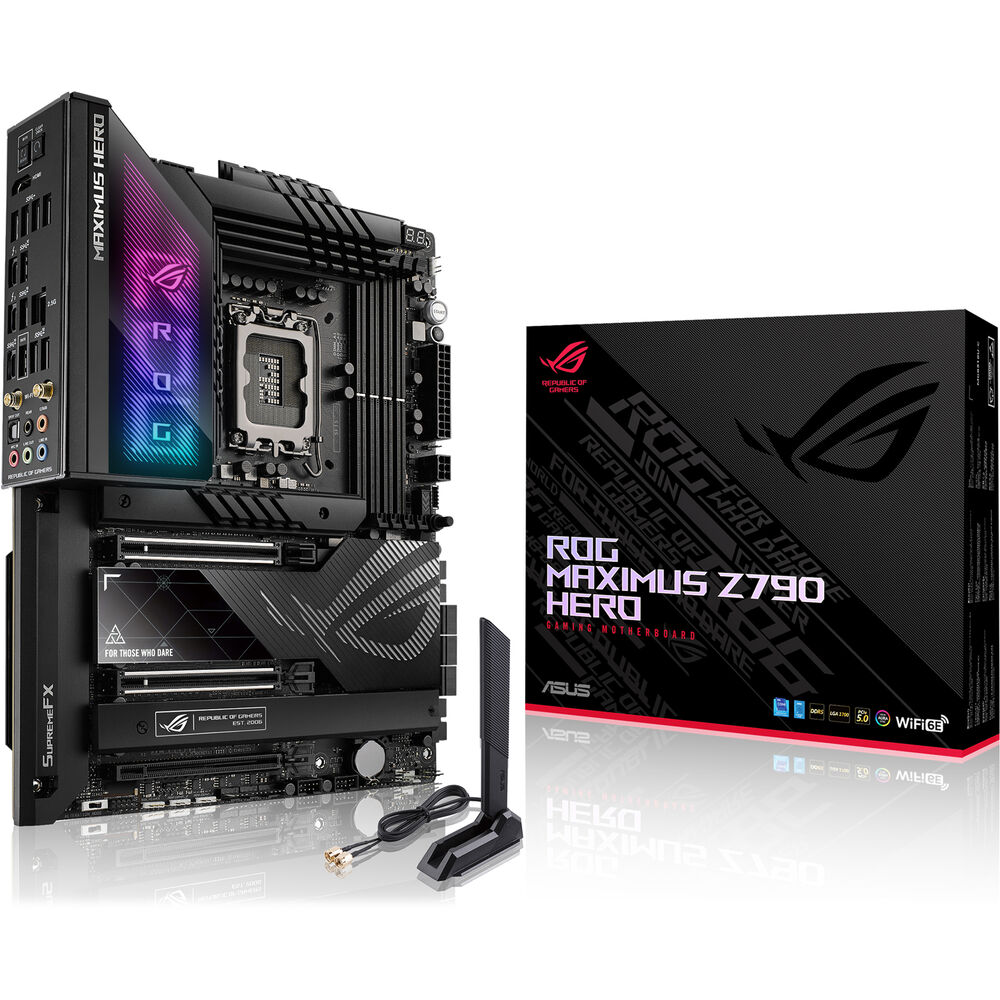

ASUS ROG MAXIMUS Z790 HERO ATX LGA 1700 Motherboard

Name: ASUS ROG MAXIMUS Z790 HERO ATX LGA 1700 Motherboard
Brand: ASUS
SKU: 195553931465
Availability: OutOfStock

$814.99

CDLE Guarantee: Protect Your Purchase on a 2 or 3 year plan.
Learn more here: https://cdlelectronics.ca/cdle-guarantee/

Out of stock

26 people are viewing this right now

Guaranteed Safe And Secure Checkout

Chipset	Intel Z790
CPU Socket	LGA 1700

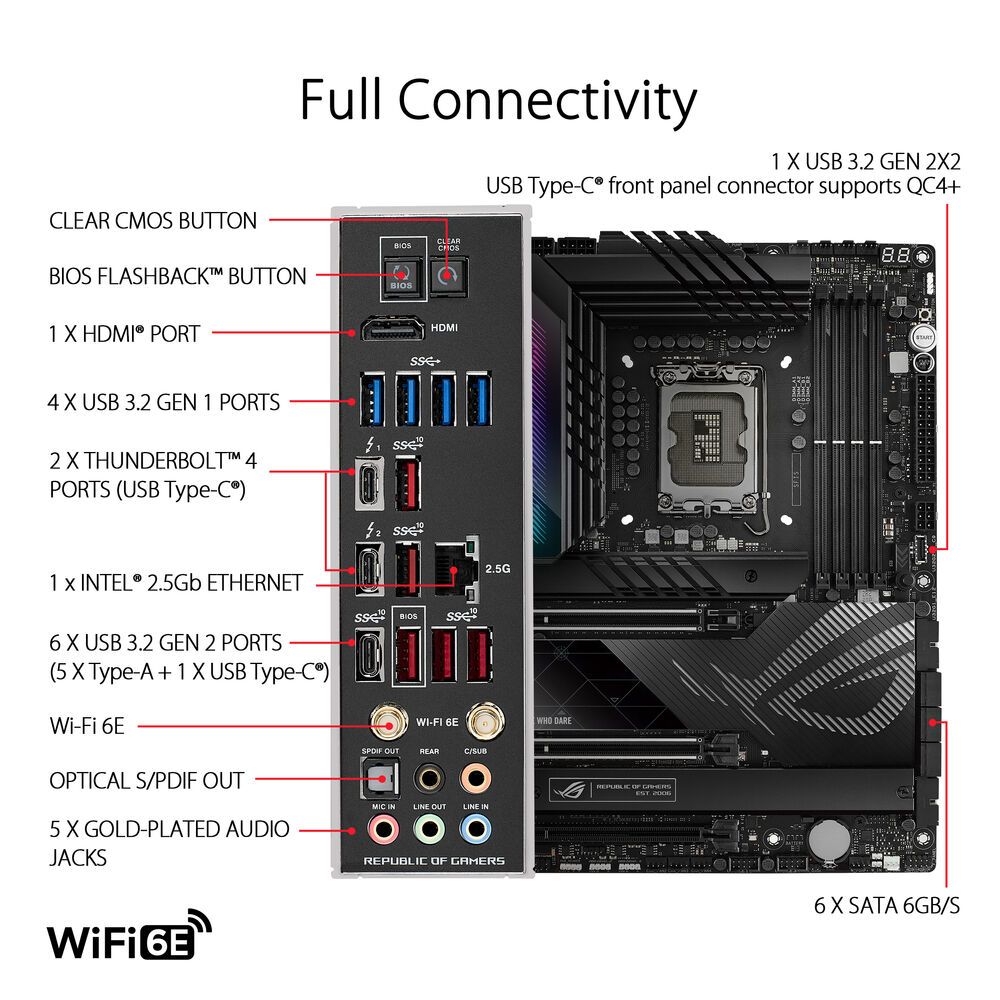

USB	5 x USB-A (USB 3.1/3.2 Gen 2) 1 x USB-C (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt	2 x Thunderbolt 4
Display	1 x HDMI
Audio	5 x 1/8″ / 3.5 mm 1 x S/PDIF
Ethernet / Controller	1 x 2.5Gigabit
Wi-Fi Antenna	2 x Connector
Buttons	BIOS Flashback, Clear CMOS

SATA	6 x SATA III
M.2	1 x 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x 2242, 2260, 2280 (PCIe 4.0 x4) 1 x 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
DIMM.2	2 Slots Supporting 2242, 2260, 2280, 22110 PCIe 4.0 x4
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 5, 10 (SATA)

Expansion Slots	2 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode)
USB	1 x 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port)

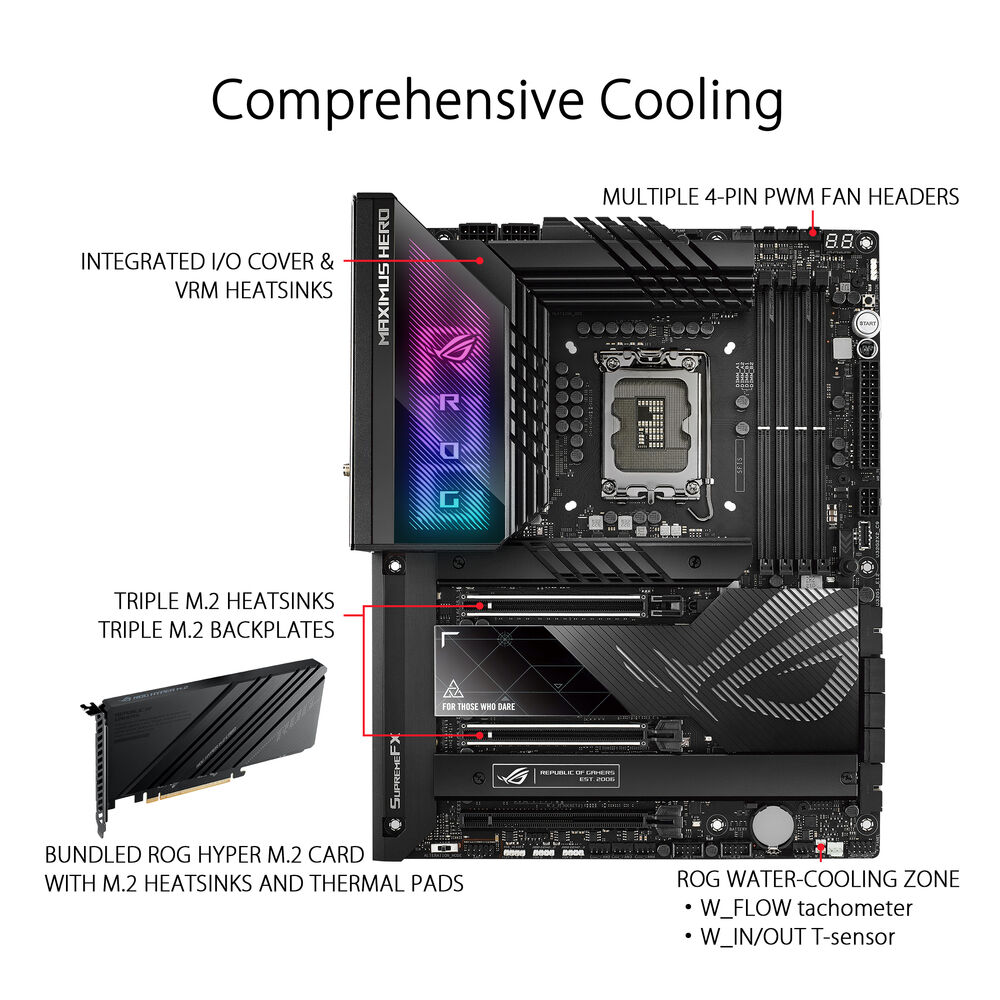

Air Cooling	2 x 4-Pin CPU 4 x 4-Pin System 1 x 2-Pin W_IN 1 x 2-Pin W_OUT 1 x 3-Pin W_FLOW
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 2 x 8-Pin CPU 1 x 6-Pin ATX

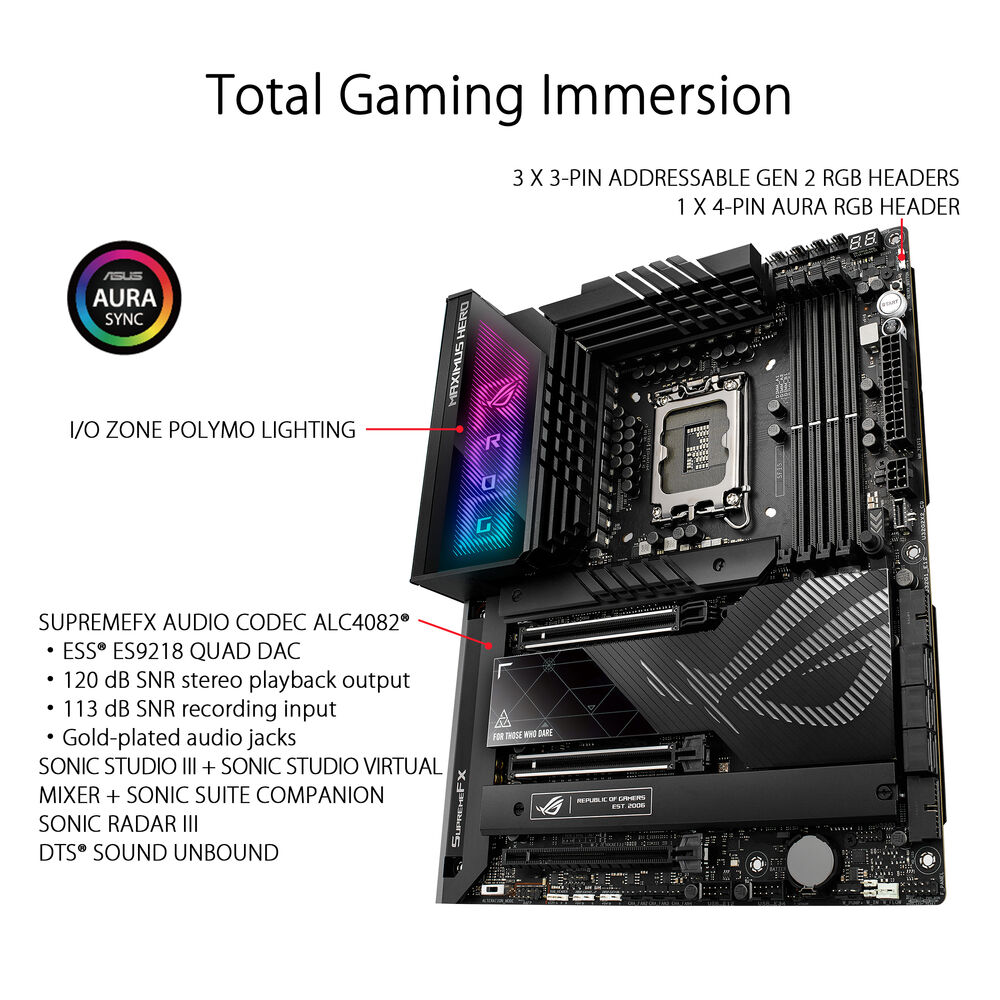

LED Header	4 x RGB
Audio	None
Diagnostics	ReTry, Start

ROM

256 Mb

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2×2

Audio Codec

Realtek ALC4082 (7.1-Channel)

Bluetooth	5.2
Wi-Fi	Wi-Fi 6E (802.11ax) with MU-MIMO Support

OS Compatibility

Windows 10
Windows 11
*As of October, 2022: Check with manufacturer for the most up-to-date compatibility

Form Factor	ATX
Dimensions	12.0 x 9.6″ / 30.5 x 24.4 cm

Package Weight	9.385 lb
Box Dimensions (LxWxH)	14.8 x 12.3 x 4.4″
