$519.99

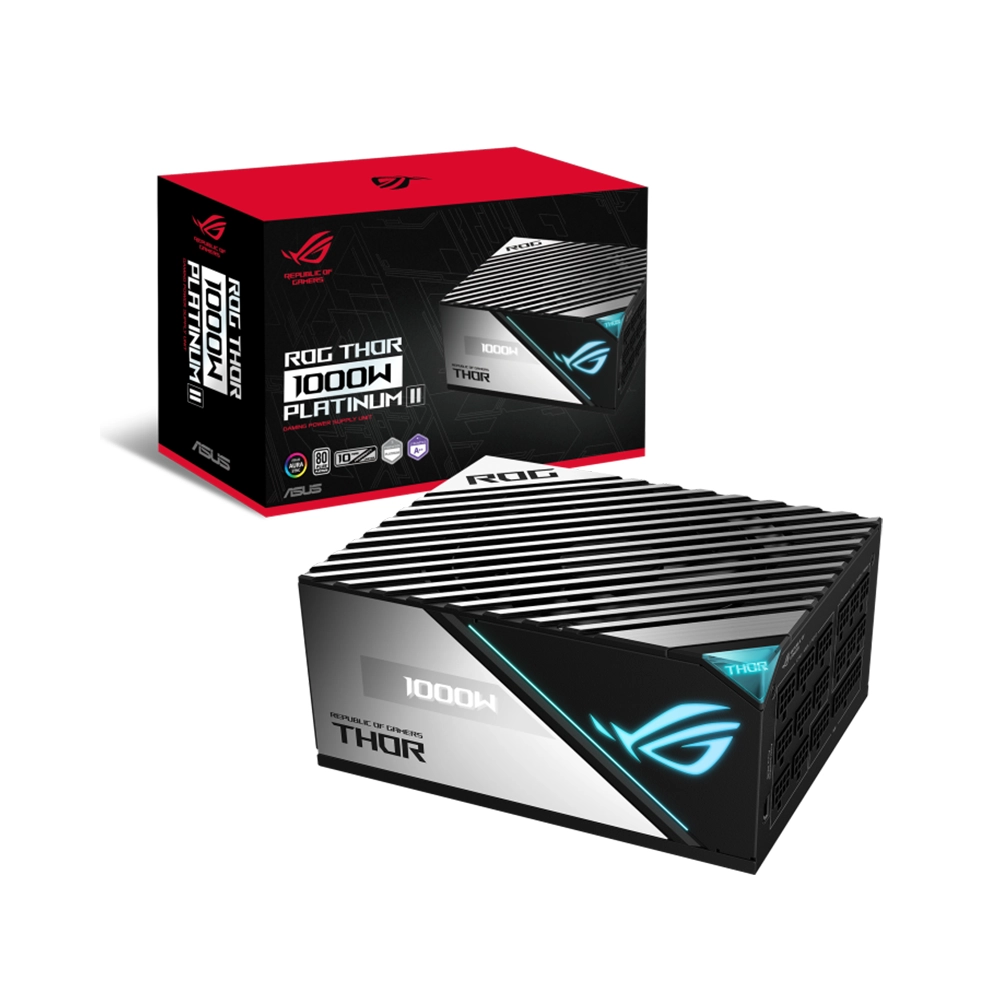

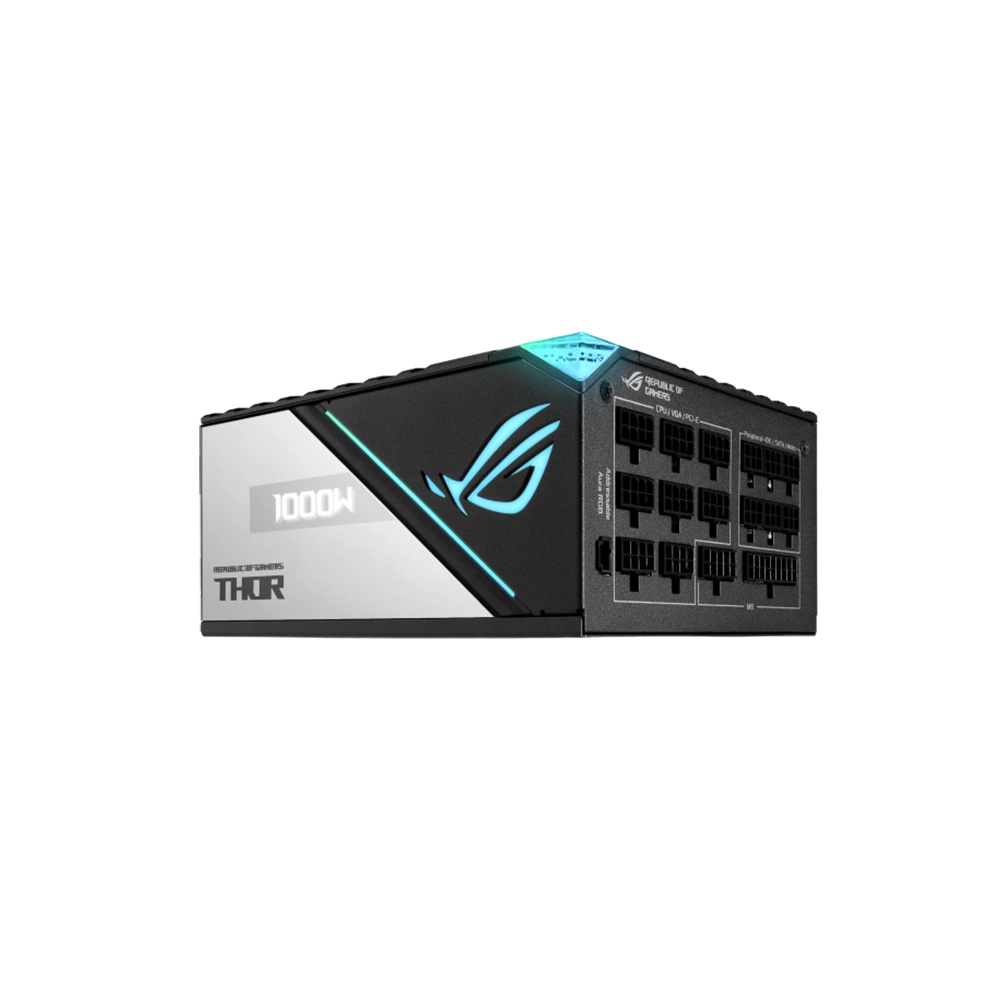

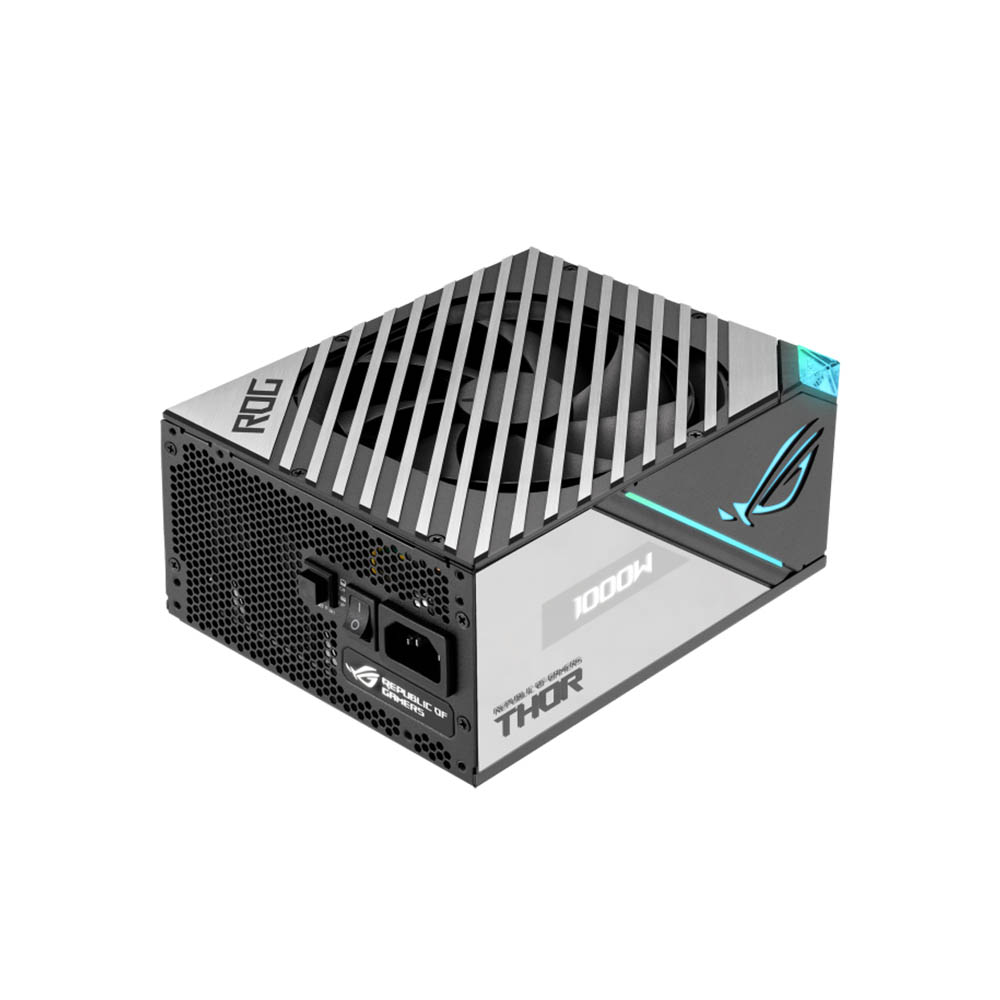

ASUS ROG Thor 1000W Platinum II 80 PLUS Modular Power Supply

Power Supplies

CDLE Guarantee: Protect Your Purchase on a 2 or 3 year plan.
Learn more here: https://cdlelectronics.ca/cdle-guarantee/

2 in stock

CDLE Guarantee - Product Replacement Program

- +
SKU: 195553236225
Tag: POWER SUPPLY

Description

Connectivity

Total Connectors
1 x 24-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
1 x 16-Pin PCIe (12VHPWR)
8 x 6+2-Pin PCIe
12 x 6-Pin SATA / Peripheral
6 x 4-Pin Peripheral / Molex
Cable Design
Modular, Sleeved
PCIe Connector Distances
26.6″ / 675 mm
29.5″ / 750 mm
SATA Connector Distances
15.7″ / 400 mm
20.5″ / 520 mm
25.2″ / 640 mm
29.9″ / 760 mm
Peripheral Connector Distances
17.7″ / 450 mm
22.4″ / 570 mm
27.2″ / 690 mm
ATX Connector Distance
24″ / 610 mm
EPS Connector Distances
25.6″ / 650 mm

Electrical

Total Wattage
1000 W
Number of +12 V Rails
1
Combined Power for +12 V
996 W
Max Load for +12 V
83 A
Combined Power for +3.3/+5 V
250 W
Max Load for +3.3 V
25 A
Max Load for +5 V
25 A
Max Power for +5 Vsb
15 W
Max Load for +5 Vsb
3 A
Max Power for -12 V
3.6 W
Max Load for -12 V
0.3 A
AC Input Power
100 to 240 VAC, 50 / 60 Hz

General

Efficiency Rating
80 PLUS Platinum
Active Power Factor Correction
None
Efficiency
89 to 92% at 100 to 50% Load

Cooling

Fan Size
135 mm
Bearing Type
Ball

Physical

Form Factor
ATX
Compliance
ATX 12 V
Protection
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications
RoHS
Dimensions
7.5 x 5.9 x 3.4″ / 190 x 150 x 86 mm
Weight
5.22 lb / 2.37 kg

Packaging Info

Package Weight
10.95 lb
Box Dimensions (LxWxH)
15.2 x 9.5 x 5.2″
