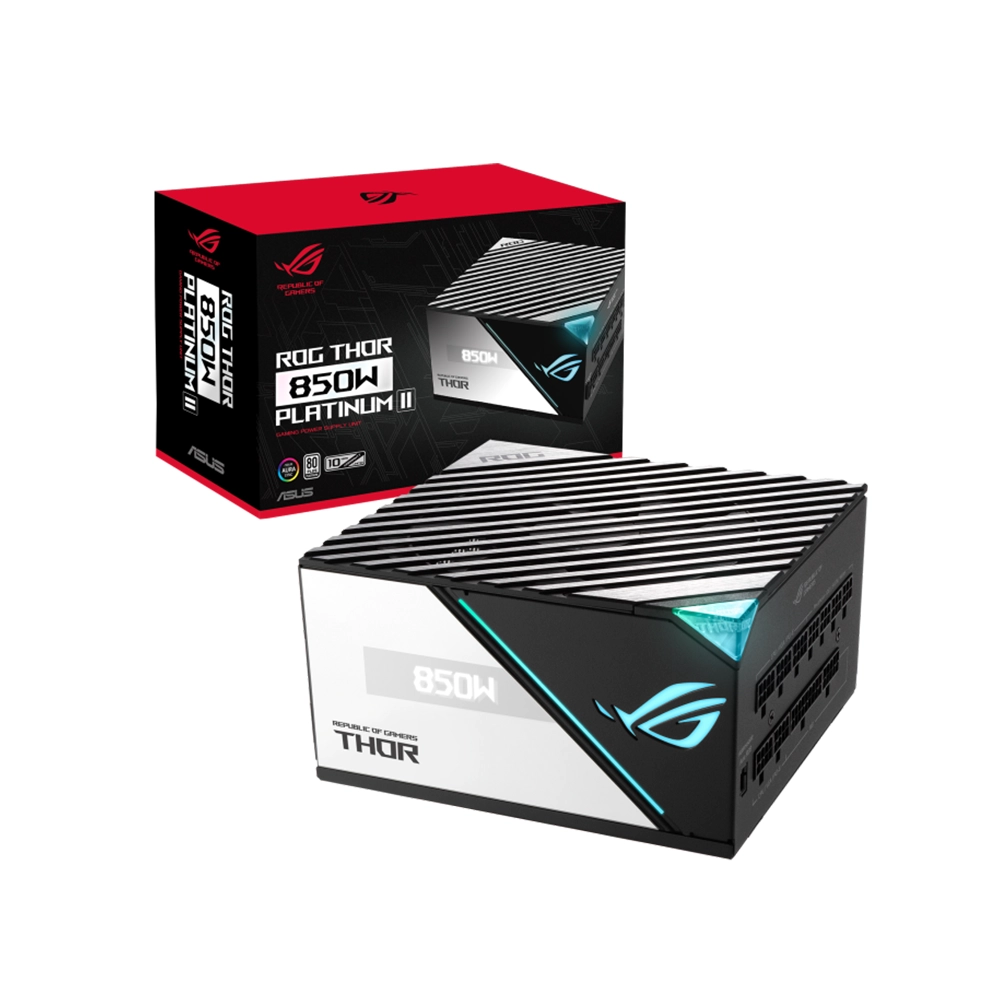

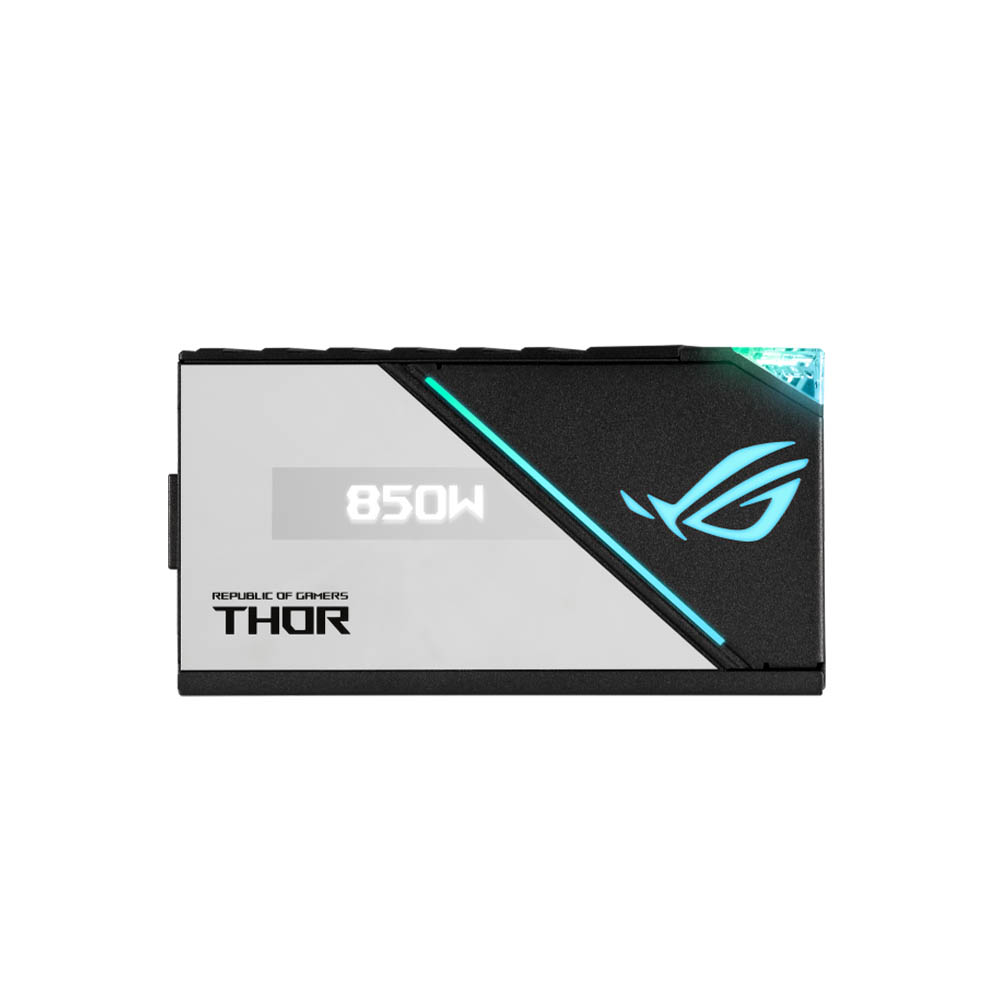

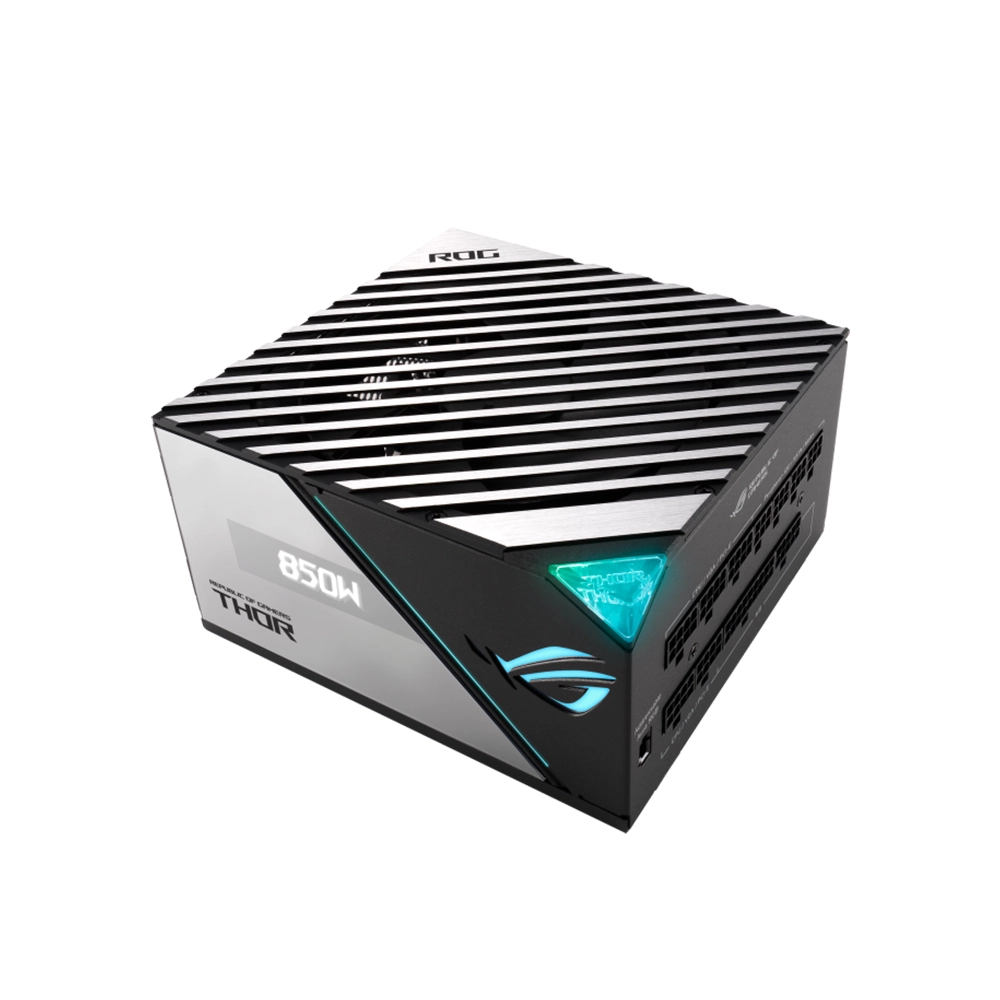

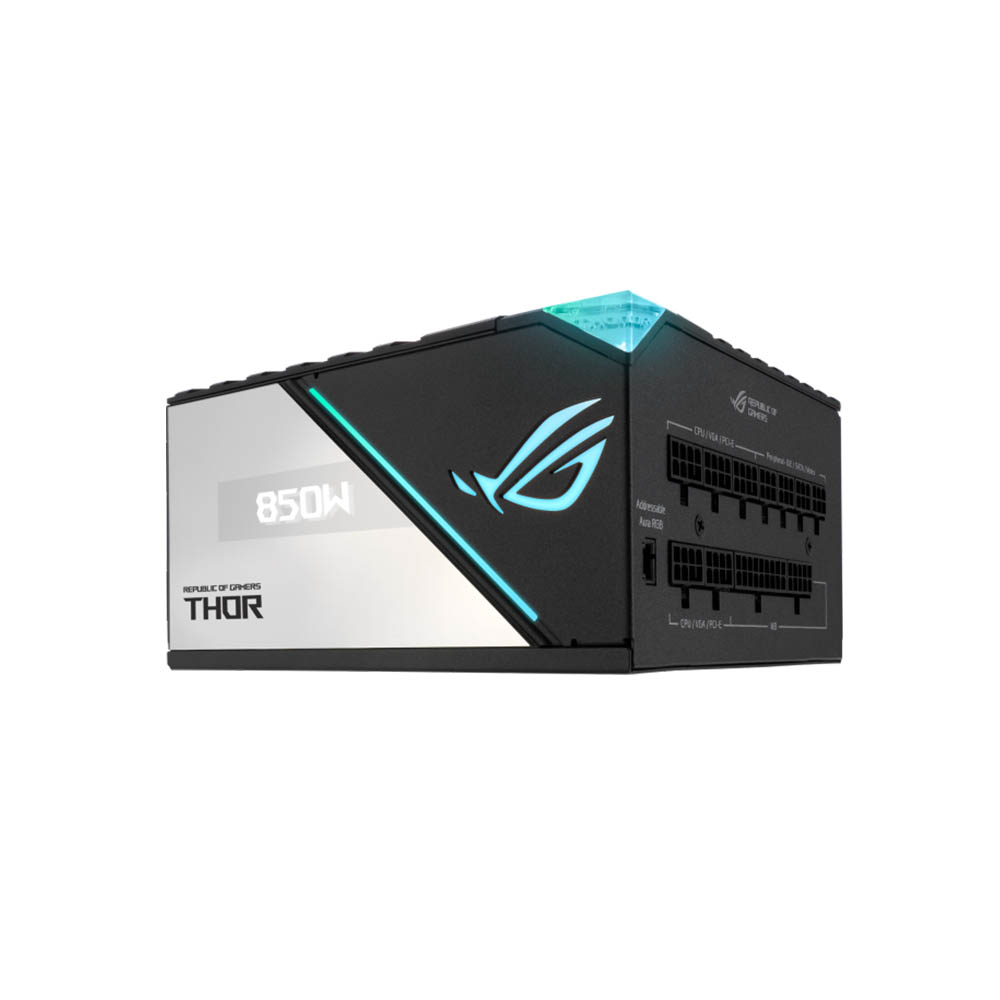

ASUS ROG Thor 850W Platinum II 80 PLUS Modular Power Supply

$369

CDLE Guarantee: Protect Your Purchase on a 2 or 3 year plan.
Learn more here: https://cdlelectronics.ca/cdle-guarantee/

Out of stock
23 people are viewing this right now
  • Check Mark Secure payment : 100% Fast & Secure Payment
  • Check Mark Fast Shipping : Free shipping
  • Check Mark 24/7 Support Services : Any Time Customer Support
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Connectivity

Total Connectors
1 x 20+4-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
1 x 16-Pin PCIe (12VHPWR)
3 x 6+2-Pin PCIe
10 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
Cable Design
Sleeved
PCIe Connector Distances
26.6″ / 675 mm
29.5″ / 750 mm
SATA Connector Distances
15.7″ / 400 mm
20.5″ / 520 mm
25.2″ / 640 mm
29.9″ / 760 mm
Peripheral Connector Distances
17.7″ / 450 mm
22.4″ / 570 mm
27.2″ / 690 mm
ATX Connector Distance
24″ / 610 mm
EPS Connector Distances
25.6″ / 650 mm

Electrical

Total Wattage
850 W
Number of +12 V Rails
1
Combined Power for +12 V
852 W
Max Load for +12 V
71 A
Combined Power for +3.3/+5 V
100 W
Max Load for +3.3 V
20 A
Max Load for +5 V
20 A
Max Power for +5 Vsb
15 W
Max Load for +5 Vsb
3 A
Max Power for -12 V
3.6 W
Max Load for -12 V
0.3 A
AC Input Power
100 to 240 VAC, 50 / 60 Hz

General

Efficiency Rating
80 PLUS Platinum
Active Power Factor Correction
Yes
Efficiency
89% at 100% Load
92% at 50% Load
Cooling
Fan Size
135 mm
Bearing Type
Ball

Physical

Form Factor
ATX
Protection
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications
TUV, CE, EAC, CCC, RoHS, IC, FCC, CB
Dimensions
6.3 x 5.9 x 3.4″ / 160 x 150 x 86 mm
